TCHW(A)冷热一体模温机TCHW(A) Series chilling-heating unit
Update time：2010/11/1 15:25:34
Description:
- The previous:压铸专用模温机Mold temperature controller for die casting
- The next one:CHW(A)工业冷水机 CHW(A)Industrial chillers
Introduction
Features ：
-
No cooling water needed(Air type)
-
Suitable for electric injection machine
-
Single unit can control wide range of temperature control from scope of chiller to that of temperature controller

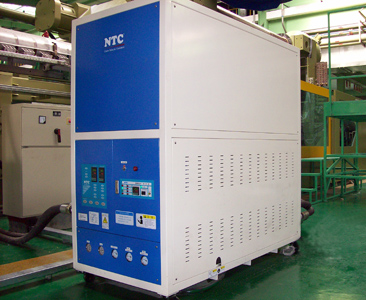

User site
：
Specification ：
| Model | TCHA-2-3L | TCHA-3-6L | TCHA-5-9L | TCHA-8-12L | TCHW-2-3L | TCHW-3-6L | TCHW-5-9L | TCHW-8-12L | |
| Medium temp'range |
10℃～95℃ | 10℃～95℃ | |||||||
| Chilling temp'range |
6℃～30℃ | 6℃～30℃ | |||||||
| Cooling Way |
Air Type |
Water Type |
|||||||
| Chilling capacity |
KW | 8.1 | 12.2 | 16.8 | 23.4 | 8.1 | 12.2 | 16.8 | 23.4 |
| KCAL/H | 7000 | 10000 | 14500 | 20000 | 7000 | 10000 | 14500 | 20000 | |
| Heating capacity（KW） |
3 | 6 | 9 | 12 | 3 | 6 | 9 | 12 | |
| Tank（Lr） | 29 | 29 | 29 | 85 | 59 | 65 | 65 | 116 | |
| Compressor capacity（kw） |
1.73 | 2.25 | 3.75 | 6 | 1.73 | 2.25 | 3.75 | 6 | |
| Fan capacity（kw） |
0.3 | 0.3 | 0.5 | 0.3*2 | |||||
| refrigerant | R-22 or R407C |
||||||||
| Cooling pump |
Output（kw） | 1.1 | 1.1 | 1.5 | 2.2 | 1.1 | 1.1 | 1.5 | 2.5 |
| Max flow（Lr/min) |
117 | 117 | 183 | 183 | 117 | 117 | 183 | 183 | |
| Hopper（Lr/min） | 10L | 10L | |||||||
| Medium pump |
Output（kw） | 0.5 | 0.5 | 0.75 | 1.5 | 0.5 | 0.5 | 0.75 | 1.5 |
| Max flow（Lr/min) |
50 | 50 | 75 | 4.5 | 50 | 50 | 75 | 4.5 | |
| Max pressure（MPa） |
0.4 | 0.38 | 0.38 | 110 | 0.4 | 0.38 | 0.38 | 110 | |
| Connection | Medium（Inch） | 3/8"*2 | 3/8"*2 | 3/8"*4 | 3/8"*4 | 3/8"*2 | 3/8"*2 | 3/8"*4 | 3/8"*4 |
| Chilling（Inch） | 3/4" | 1" | 1" | 1-1/4" | 3/4" | 1" | 1" | 1-1/4" | |
| Cooling（Inch） | - | 3/4" | 1" | 1-1/2" | 1-1/2" | ||||
| Water（Inch） | 1/2" | 1/2" | 3/4" | 3/4" | 1/2" | 1/2" | 3/4" | 3/4" | |
| Drain（Inch） | 1/2" | 1/2" | 3/4" | 3/4" | 1/2" | 1/2" | 3/4" | 3/4" | |
| Weight（kg） | 320 | 320 | 320 | 420 | 280 | 300 | 360 | 420 | |
| Total power（kw） |
6.63 | 10.4 | 15.5 | 21.55 | 6.33 | 10.1 | 15 | 21 | |
| Power supply |
AC 380V,50Hz,3P/200V,50Hz,3P Suitable for different countries |
||||||||
| Alarm functions |
Medium short, Pump overload, Compressor overload, Compressor high pressure, Freeze, Water pressure abnormal |
||||||||
| Dimension L*W*H（mm） |
L（mm） | 1200 | 1200 | 1200 | 1760 | 1000 | 1000 | 1100 | 1300 |
| W（mm） | 700 | 700 | 700 | 850 | 650 | 700 | 700 | 700 | |
| H（mm） | 1522 | 1550 | 1530 | 1300 | 1200 | 1200 | 1420 | 1434 | |
