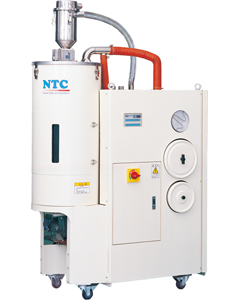

NDD输送一体除湿干燥机

NDD输送一体除湿干燥机

Update time:2010/11/1 16:34:36

Description:
Introduction

Features:

  • Low dewpoint(-40℃)effective dehumidification with imported Honeycomb Rotor.
  • Japan Fuji motor,Omron and Schneider components.
  • PID temperature control with ±1℃ precision,Japan RKC controller.
  • Double layer hopper with stainless steel material to maintain temperaure and save energy.
  • Measurable conveyance function, preventing the hose blocking,ease to clean hose and the
  • machine has two functions of the drying and forming conveyance.
  • With Alarm Alert if system or pressure overload,over heated, material loading situation etc.

User site:

Specification:

Model NDD-10 NDD-15 NDD-25 NDD-50 NDD-75 NDD-100 NDD-150 NDD-200 NDD-250 NDD-300
Drying hopper Capacity(L) 17 28 44 90 125 170 250 350 425 500
Thermal Insulation Material Glass Wool & Outer Jacket
Dew point(℃) -40℃
Air flow(m3/h) 40 80 120 180 280
Drying temperature(℃) MAX160
Drying blower Motor outpu(KW) 0.22 0.38 0.9 1.5 2.2 1.5
Regeneration blower Motor output(W) 50 94 94 130
Drying heater(kw) Capacity 220V 1 2.1 4 6 7.5 12.4
380V 1.2 9.1 15
Regeneration heater(kw) Capacity 220V 1 1.41 2.4 3 5.8 9
380V 1.2 1.71 7 10.9
Absorbent Zeoliterotor
Absorbent motor Motor power(W) 15 25 40
Conveyance length Primary(m) 10
Secondary(m) 5 10
Conveyance blower Motor output(kw) 1.1 3
Control Temp.control PID Control
Alarm(Protection Circuit) Overheating(Drying、Regeneration)、Motor overload、Motor Reverse Prevention、Delayed Cooling at Shutoff
Weight(kg) 200 224 233 300 310 330 346 500 685 700
Dimension(mm) W(mm) 960 1157 1286 1460 1710
L(mm) 565 565 640 640 740 900
H(mm) 1325 1325 1585 1550 1850 1735 2120 2035 1888 2035
H1 403(Standard :JC-3) 483.5(Standard :JC-6) 518.5(Standard :JC-9)
