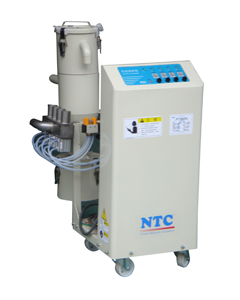

MA自动加料机Three-phase auto loader
Update time：2010/11/2 9:31:44
Description:
- The previous:CSW大型除湿干燥机Super Dehumidifying Dryer System
- The next one:Play 顶吸式自动加料机Single-phase auto loader
Introduction
Features：
-
Makes the best use of the maximum available space in crowded factories with limited space Designed
-
to be more compact,streamlined and highly efficient.
-
Dust_discharging is easier just when the agraffe is opened.This reduces the maintenance frequency
-
improving productivity even more.
-
By using a low_noise blower,unpleasant metallic and conveyor noises are reduced to a minimum.
-
Digital settings and indicators. Conveyor control for various machines can be we succeeded in making
-
the operations simpler by using a touch_type panel with simply carried out.
-
By simply attaching the special diverging valve,Jet Loader serves as a 2_6directional loader.
Specification：
| Model | Max air flow(m3/min) | Max output(kw) | Hopper capacity(L) | Dimension（mm） | Weight（kg） | ||
| L（mm） | W（mm） | H（mm） | |||||
| MA-200 | 2.4 | 1.1 | 6 | 580 | 410 | 905 | 50 |
| MV-200 | 3 | ||||||
| MA-400 | 2.9 | 1.5 | 9 | 630 | 460 | 905 | 60 |
| MV-400 | 6 | ||||||
| MA-600 | 3.5 | 2.2 | 19 | 680 | 510 | 955 | 70 |
| MV-600 | 9 | ||||||
